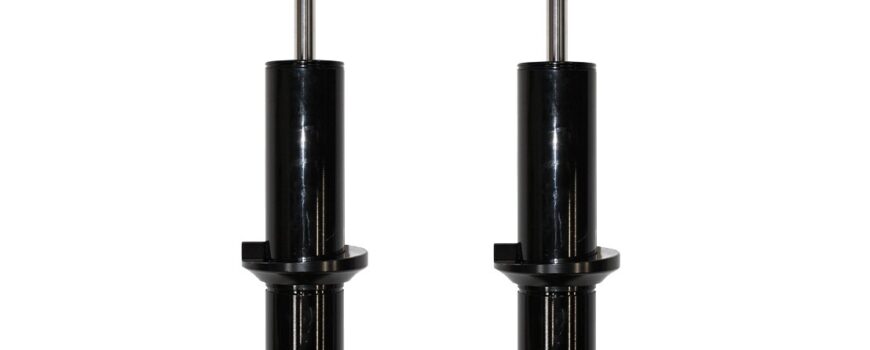

Dobinsons IMS59-60710 2.6" IFP Front Struts Pair

$800.00

For 1.75-3.0″ of lift
Fully rebuildable and re-valvable
SOLD IN PAIRS
Zero shock fade in all terrains with full load
Direct, bolt-on replacement for easy fitment
IFP – Internal Floating Piston, separates oil and nitrogen
Corrosion resistant (EDP Surface Protection)
Heavy duty single piece lower leg
Enormous oil capacity
Features clip adjustment levels for fine tuning of lift height
4 Clip height settings. Lowest height is stock/OE height. Each clip height adds approximately 1/2″ of lift. Use clip heights to fine tune lift height or offset for vehicle lean
Recommended to run with Dobinsons coils. OE coils may contact the thicker shock body
TRD Pro models should start at the 2nd clip up to add 1/2″ of coil seat height, which equals the 1″ of lift the PRO’s come with when new
ASSEMBLY INSTRUCTIONS
Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
Race inspired hi-flow CNC 6061 Billet alloy piston – for the ultimate in offroad handling
66mm/2.6” Bodied Series – 60mm hi-flow CNC 6061 Billet alloy piston – 60mm bore – Vehicle specific fitment – Suitable for most heavier vehicles
615mm extended, 445mm compressed lengths
Full 2 year limited warranty, no set rebuild time period
If you are buying parts separately (coils and struts) and want them preassembled prior to shipping, add this product to your cart also
