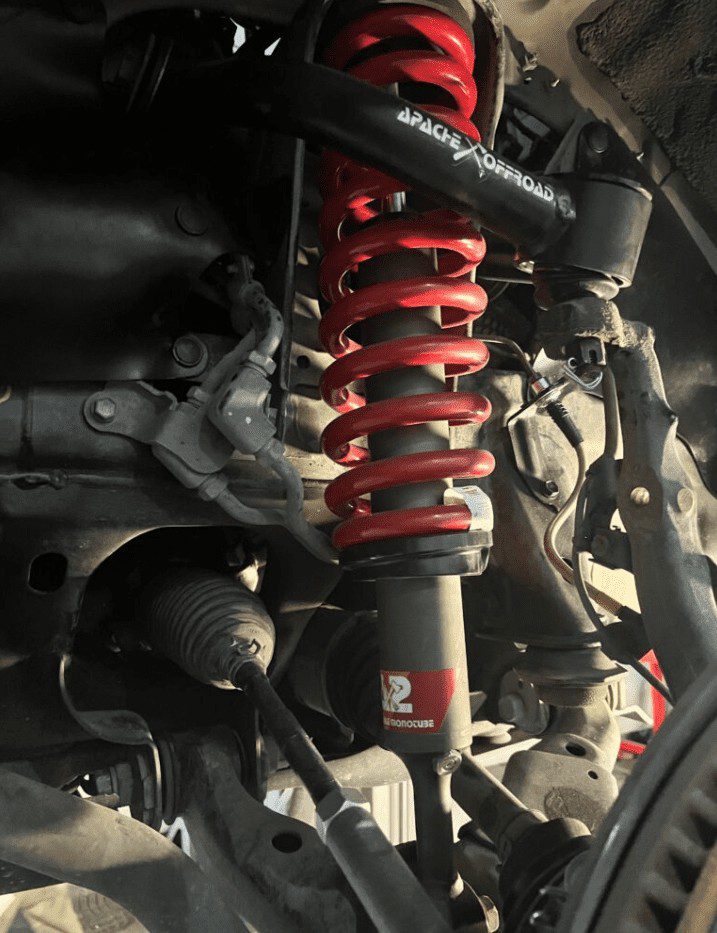

Apache Offroad AX2 IFP Struts Pair | 03-09 4Runner, 06-09 FJ, 05-23 Tacoma, GX470
- Suits 2nd and 3rd Gen Tacoma 2005-2023, 4th Gen 4Runner 2003-2009, Early FJ Cruiser 2006-2009, Lexus GX470 2003-2009, suitable for 0 – 3.5″ of lift
- 3 Spring seat settings: OEM height 0″ (213mm), +1″ (226mm), and +1.5″ (231mm)
- Use with OEM coils for a mild lift by preloading, or run lifted coils like Dobinsons
- Direct Bolt on Installation
- Proprietary high-Zinc content paint coating for superior protection against rock chips and abrasion damage
- Nitrogen Charged Monotube 2.2″ Body Design
- Internal Floating Piston- Separates the oil and nitrogen to prevent shock fade
- Fully rebuildable and revalvable
- Linear Valving
- Hardened Chrome Piston shaft- resists rock damage and corrosion
- Precision Japanese CNC machined, High Flow 50mm Piston
- Heavy Duty Ultra Low Friction Japanese 3 Stage Seal System
- High Quality German Oil
- Heavy Duty Lower Leg
- Hardened Rubber Lower Bushing provides a long an quiet life
- T6 6061 Aluminum Spring Seat
- Heavy Duty Spring Seat Circlip
- Heavy Duty 1/8″ (3mm) DOM wall thickness
- Down travel Spacer (under top hat spacer shaft spacer/extender) to provide adequate down travel for lift heights of 3-3.5″- Eliminates the need to rebuy extended travel struts when making changes to taller lift heights. Ideal for those who change their lift height overtime. Works by extending the point at which the upper washer sits on the shaft, thus raising the mounting position of the top hat and increasing down travel. Use for lifts 3-3.5″
- Works from 0-3.5″ of lift
- 2 Year Manufacturer’s Warranty
- No set rebuild periods
- 430mm Compressed, 570 mm Extended without DT Spacer, 575mm Extended with DT Spacer
- SOLD IN PAIRS – Includes new washers and bushings for the top, and lower bushings are pressed in
$500.00
In Stock
SKU: AX2-10F
Categories: 4Runner 4th Gen (2003-2009), Apache Offroad, Early FJ Cruiser (2006-2009), GX470 (2002-2009), IMS Monotube, Shocks + Struts - 4th Gen 4Runner, Shocks + Struts - Lexus GX470, Shocks + Struts - Tacoma 2nd Gen, Struts + Shocks - FJ Cruiser Early, Struts and Shocks, Suspension, Tacoma 2nd Gen (2005-2015)
Brand: Apache Offroad
Description
The Apache AX2 IFP Rebuildable Monotube’s were designed for superior performance in harsh offroad conditions and on road performance. The AX2 integrates premium design features into a cost efficient package. The AX2 Features a Monotube design, complete with an independent floating piston, and high nitrogen pressure to prevent shock cavitation. Heat dissipation is a major factor in a shock absorbers ability to provide consistent damping. High heat build up, can create a situation where the oil develops bubbles/foam thus not allowing the piston to provide proper damping. By placing the oil under high pressure, and then separating the oil and gas by way of the IFP- we are able to create a shock absorber capable of preventing shock cavitation (shock fade) under high heat scenarios. Since a Monotube shock is a singular cylindrical tube, heat only has to transfer through one wall before dissipating to the outside air. A monotube also allows for a larger piston thus provides the user with more consistent and precise damping. The Apache AX2 has been developed to provide quality performance, reliability, and ride quality.
Apache AX2 Features:
- 3 Spring seat settings: OEM height (0″), +1″, and +1.5″
- Direct Bolt on Installation
- Includes upper bushings and washers, and lower bushings already pressed in
- Proprietary high-Zinc content paint coating for superior protection against rock chips and abrasion damage
- Nitrogen Charged Monotube Design
- Internal Floating Piston- Separates the oil and nitrogen to prevent shock fade
- Fully rebuildable and revalveable
- Linear Valving
- Hardened Chrome Piston shaft- resists rock damage and corrosion
- Precision Japanese CNC machined, High Flow Piston
- Heavy Duty Ultra Low Friction Japanese 3 Stage Seal System
- High Quality German Oil
- Heavy Duty Lower Leg
- Hardened Rubber Lower Bushing provides a long and quiet life
- T6 6061 Aluminum Spring Seat
- Heavy Duty Spring Seat Circlip
- Heavy Duty 1/8″ (3mm) DOM wall thickness
- Down travel Spacer (under top hat spacer shaft spacer/extender) to provide adequate down travel for lift heights of 3-3.5″- Eliminates the need to rebuy extended travel struts when making changes to taller lift heights. Ideal for those who change their lift height overtime. Works by extending the point at which the upper washer sits on the shaft, thus raising the mounting position of the top hat and increasing down travel. Use for lifts 3-3.5″
- Works from 0-3.5″ of lift
- 2 Year Warranty
- 430mm Compressed, 570 mm Extended without DT Spacer, 575mm Extended with DT Spacer
Vehicle Fitment:
2003 Toyota 4Runner
2004 Toyota 4Runner
2005 Toyota 4Runner
2006 Toyota 4Runner
2007 Toyota 4Runner
2008 Toyota 4Runner
2009 Toyota 4Runner
2003 Lexus GX470
2004 Lexus GX470
2005 Lexus GX470
2006 Lexus GX470
2007 Lexus GX470
2008 Lexus GX470
2009 Lexus GX470
2006 Toyota FJ Cruiser
2007 Toyota FJ Cruiser
2008 Toyota FJ Cruiser
2009 Toyota FJ Cruiser
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
