Dobinsons IMS Leveling Kit Toyota 4Runner 2010-24

Name: Dobinsons IMS Leveling Kit Toyota 4Runner 2010-24
SKU: 5THGEN4RUNIMSLVLKIT
Price: 1230.00 USD
Availability: InStock
Rating: 5.00 (10 reviews)

Rated 5.00 out of 5 based on 10 customer ratings

(10 customer reviews)

Leveling Kit for upgrading the performance of your vehicle with new Dobinsons IMS struts and shocks
If you have a 2WD model, add 1″ to the listed lift heights of the front coils due to the lighter front weight of the vehicle
A stock 4runner comes from the factory with 2″ of rake (the rear is 2″ higher than the front). To completely level the vehicle and remove all rake, you would lift the front 2″ and leave the rear stock. It is recommended to leave 1″ of rake though to be able to carry a car full of people or loaded up for camping, etc. It is not advisable to leave the rear lower than the front.
Can reuse the OE coils, or upgrade to Dobinsons
Recommended would be 1-1.5″ up front and stock height rear
Standard IMS coil seat height should be set to 213mm (8.39″). Every 1/4″ added beyond that adds 1/2″ of lift height measured at the wheel.
Nitrogen Gas Charged Monotube IFP Shocks, Superior Design, thicker walls, longer travel
IFP – Internal Floating Piston for excellent ride quality from the shocks
Optional High Quality Australian-made coil springs, heat treated, fully scragged, powder coated
Lift heights are based on the standard 20″ front and 22″ rear, measured from the center of the hub up to the fender edge. Many vehicles come in at different heights from the factory based on trim levels and options
Base Kit Includes 2 Front IMS Monotube Struts, 2 Rear IMS Monotube Shocks
Suspension Installation Video

From $1,230.00

In Stock

Select Front Struts

IMS struts have fully height adjustable coil seats. You can use these with OE coils or Dobinsons upgraded coils
IMS59-50700 - IMS non-resi monotube, adjustable height (0-3" lift)

Select Rear Shocks

Select Front Coils

No coils are included unless you select them. You can use OE coils and use the adjustable height IMS to set the height from 0-2" of lift, or you can upgrade the coils with Dobinsons options here:
Stock weight = all stock front end | 110 LBS is usually a slim line bumper and winch with synthetic line | 220 LBS is usually a full width steel bumper with a winch and synthetic or steel line
C59-238 - Stock front end, low height 3/4" to 1"
C59-296 - Stock front end, 1.5" lift
C59-300 - Stock front end, 1.75-2.0" lift
C59-302 - Stock - 2.5" | 2.0" with 110-150lbs constant load added

Add Rear Coils?

You can reuse OE coils, or buy new Dobinsons coils. For these coils, every 100lbs of added weight drops the rear by about 1/4"
C59-323 - Stock height up to 1/2" lift
C59-599 - 1.25-1.5" with stock weight
C59-505 - 1.75-2.0" with stock weight

Add New Strut Mounts?

If you want to add new front strut top mounts so you don't have to separate the old coilovers and reuse the mounts, add that here

Add Front Strut Assembly?

If you want the front coils, struts and new strut mounts (must be added above) to be assembled prior to shipping, add that here

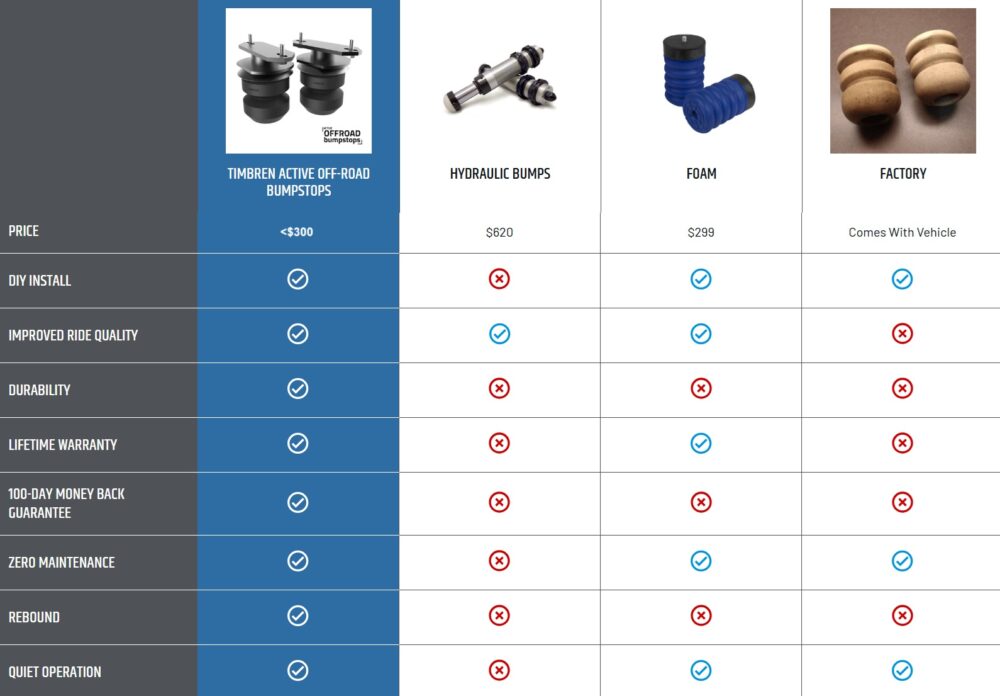

Add New Front Bump Stops?

If you regularly offroad, extending your bump stops helps reduce the harsh impact when the front bottoms out. Click the small box to the right of the product for more information.

Add Rear Bump Stops?

For those who regularly offroad and stand a chance to bottom out more often, or for those running the 575 long travel shocks, new bump stops should be added

Add Airbags?

If you regularly tow with your vehicle, carry a motorcycle on a hitch mount, or have huge variances between daily weight and loaded trip weight, a set of Firestone helper air springs will be very useful. Inserts inside your rear coil springs to add additional load support, Manually inflate or deflate the air bags to add or remove support or height.

SKU: 5THGEN4RUNIMSLVLKIT Categories: 4Runner 5th Gen (2010-2024), Dobinsons, Full Suspension Kits, Full Suspension Kits - 5th Gen 4Runner, Suspension Tag: ims Brand: Dobinsons Spring & Suspension

Description
Reviews (10)

Description

You have found the Dobinsons IMS Leveling Kit for the 5th Gen 4Runner. Dobinsons offers this IMS leveling kit for the 2010-2023 Toyota 4Runner 5th Generation 4.0L V6, with the option of keeping and reusing your stock coils to keep costs down, or upgrading to Dobinsons coils. You can start with a basic kit of front and rear IMS shocks/struts, and then you can build it up from there. Contact us directly if you have questions before ordering.

Dobinsons suspension is one of the most popular and highly sought-after suspension systems offered for Toyota 4Runners in the USA. Why are people always looking for it? It’s because you’ll be hard pressed to find any negative reviews of the products anywhere online. Check out the web forums such as T4R.org and 4Runners.com in addition to IH8MUD.com and you’ll see plenty of reviews and customer feedback and questions for all the Toyota offerings from Dobinsons. The proof is right there, listen to what the people have to say.

Dobinsons IMS 4runner levling kit is designed, developed and tested in Australia by Dobinsons Spring & Suspension, in-house suspension design engineers, our 4×4 shock absorbers and coil springs are designed and tested to perform in the harshest conditions right across the world. As we export to over 40 countries worldwide from their Australian head office, the importance of quality is at the forefront in the complete design and manufacturing process. This ensures every shock and coil spring can withstand the blistering heat and corrugations of the Australian outback right through to the subzero temperatures of a Russian winter.

Dobinsons IMS monotube shock absorbers are designed for next level performance over twin tube shocks in those hot, harsh, demanding conditions. By utilizing the monotube design, Dobinsons IMS shock absorbers are able to resist fade far longer on corrugated roads, long or hard working 4WD trips, towing or racing conditions.
The larger 50 and 60mm high flow pistons reduce internal pressures, reduce the heat generated, transfer heat to the body for faster cooling and offer improved damping performance and vehicle control at higher shaft speeds on rough terrain and during big impacts. Threaded bodies on struts allow for fine tuning of height and offer further improvements in cooling. The micropolished, hard chromed and heat treat shock shaft, CNC aluminum high flow race inspired piston, and DOM seamless tubing body provides the ultimate in performance and off-road durability.

Composite piston wear bands, high quality Fuchs oil and a race style 3-stage sealing system offer the lowest levels of friction whilst maintaining durability and longevity without the need for frequent rebuilding or servicing. Dobinsons team of engineers spend hundreds of hours of testing and tuning the shim stacks and damping Characteristics in each IMS shock to ensure a balance of comfort, handling, vehicle control and off-road performance – Enjoy the ride

We proudly manufacture the highest quality replacement coil springs for many different applications, complying to ISO9001:2008 international quality standards from our state of the art manufacturing facility in Central Queensland, Australia.

All Dobinsons IMS 4runner levling kit coil springs are load tested and scragged 100% to eliminate subsequent spring sag. We also perform spring fatigue and hardness testing using in-house state of the art testing equipment.
