Dobinsons IMS59-50222 Extended Travel Front 2.2″ IFP Struts Pair | Tacoma 4Runner Tundra Sequoia

(13 customer reviews)
  • Suits 1996-2002 3rd Gen 4Runner, 1996-2004 1st Gen Tacoma, 2000-2006 Toyota Tundra, 2001-2007 Toyota Sequoia, Toyota Prado 90
  • Suits Toyota Land Cruiser Prado 90 and 95 Models RZJ90, VZJ90, KZJ90, KDJ90, RZJ95, VZJ95, KZJ95, KDJ95
  • Extended Travel
  • Fully rebuildable and re-valvable
  • Zero shock fade in all terrains with full load
  • Direct, bolt-on replacement for easy fitment
  • IFP – Internal Floating Piston, separates oil and nitrogen
  • Corrosion resistant (EDP Surface Protection)
  • Heavy duty single piece lower leg
  • Enormous oil capacity
  • Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
  • Race inspired hi-flow CNC 6061 Billet alloy piston – for the ultimate in offroad handling
  • 56mm/2.2” Bodied Series – 50mm hi-flow CNC 6061 Billet alloy piston – 50mm bore – Vehicle specific fitment
  • Full 2 year limited warranty, no set rebuild time period

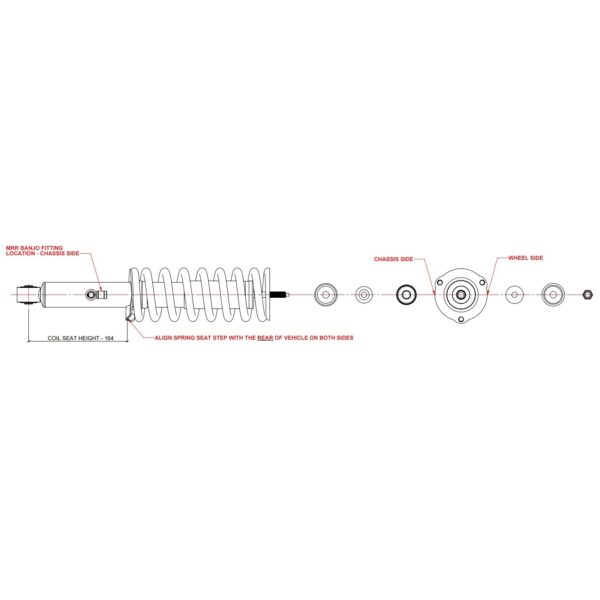

  • Instructions for setting coil seat height
  • Standard coil seat height is 164mm
  • Struts only, sold as a pair – the coils are sold separately
  • 473mm extended, 335mm compressed lengths
  • It’s recommended that these coilovers to be run with aftermarket UCA’s for coilover clearance and correct travel and a diff drop kit
  • Note: Anyone lifting over 2″ shock install the included droop spacer, as pictured, and run a diff drop kit and UCA’s

$650.00

In Stock
Share (0)
Total: 0 Total: 0
SKU: IMS59-50222 Categories: , , , , , , , , , , , , Brand:

Description

Pair of front Dobinsons IMS59-50222 Internal Reservoir Monotube adjustable height Extended travel struts (does not include coils or top mounts) for 1996-2002 3rd Gen 4Runner, 1996-2004 1st Gen Tacoma, 2000-2006 Toyota Tundra, 2001-2007 Toyota Sequoia, Toyota Prado 90, suitable for 0 –2.5″ of lift.  These have an adjustable lower coil seat to fine tune lift height or any lean in the vehicle.  These do not come with coil springs or top mounts.  They do come with new rubber bushings and required washers for installation.  Select Dobinsons coil springs based on desired lift height and load capacity.  Coil springs are all based on desired lift height, how much weight your vehicle has added over stock, and what type of ride quality you are looking for once it’s all been installed.

Link to Youtube video: https://youtu.be/Npfx40VD3kM

Link to shop for suitable front coils: https://exitoffroad.com/product-category/suspension/coil-springs/

Dobinsons IMS Monotube IMS59-50222 Shock Absorbers are designed for next level performance over Twin Tube Shocks in those hot, harsh, demanding conditions. By utilising the Monotube design, Dobinsons IMS59-50222 Shock Absorbers are able to resist fade far longer on corrugated roads, long or hard working 4WD trips, towing or racing conditions.

The larger 50 and 60mm high flow pistons reduce internal pressures, reduce the heat generated, transfer heat to the body for faster cooling and offer improved damping performance and vehicle control at higher shaft speeds on rough terrain and during big impacts. Threaded bodies on struts allow for fine tuning of height and offer further improvements in cooling.

The micro-polished, hard chromed and heat treated shock shaft, CNC aluminium high flow race inspired piston, and DOM seamless tubing body provides the ultimate in performance and off-road durability.

Composite piston wear bands and a race style 3-stage sealing system offer the lowest levels of friction whilst maintaining durability and longevity. Dobinsons team of engineers spend hundreds of hours of testing and tuning the shim stacks and damping characteristics in each IMS Shock to ensure a balance of comfort, handling, vehicle control and offroad performance – Enjoy the ride

Vehicle Fitment:

1996 Toyota 4Runner Front Struts
1997 Toyota 4Runner Front Struts
1998 Toyota 4Runner Front Struts
1999 Toyota 4Runner Front Struts
2000 Toyota 4Runner Front Struts
2001 Toyota 4Runner Front Struts
2002 Toyota 4Runner Front Struts

1996 Toyota Tacoma Front Struts
1997 Toyota Tacoma Front Struts
1998 Toyota Tacoma Front Struts
1999 Toyota Tacoma Front Struts
2000 Toyota Tacoma Front Struts
2001 Toyota Tacoma Front Struts
2002 Toyota Tacoma Front Struts
2003 Toyota Tacoma Front Struts
2004 Toyota Tacoma Front Struts

2000 Toyota Tundra Front Struts
2001 Toyota Tundra Front Struts
2002 Toyota Tundra Front Struts
2003 Toyota Tundra Front Struts
2004 Toyota Tundra Front Struts
2005 Toyota Tundra Front Struts
2006 Toyota Tundra Front Struts

2001 Toyota Sequoia Front Struts
2002 Toyota Sequoia Front Struts
2003 Toyota Sequoia Front Struts
2004 Toyota Sequoia Front Struts
2005 Toyota Sequoia Front Struts
2006 Toyota Sequoia Front Struts
2007 Toyota Sequoia Front Struts

1996 Toyota Prado 90 Front Struts
1997 Toyota Prado 90 Front Struts
1998 Toyota Prado 90 Front Struts
1999 Toyota Prado 90 Front Struts
2000 Toyota Prado 90 Front Struts
2001 Toyota Prado 90 Front Struts
2002 Toyota Prado 90 Front Struts
