OME Upper Control Arms – 200 Series Land Cruiser
- Suits Land Cruiser 200 Series and Lexus LX570 2008-2021
- Forged Ball Joint Housing
- Forged Eyelets
- Heavy Duty greasable Ball Joints
- OME Ball joint protective cap
- GIIRO bushings, free pivoting, grease free and maintenance free
- Increased camber and caster for 2in lift
- Mount provision for OE ABS wires
- ARB’s Intergrit powder coat finish
- Boxed in pairs with foam inserts
- Fitting instructions included
- OME Branded outer sleeve
- Tested and passed to meet VSB14 requirements
- 3 Year Manufacturers Warranty
- Made in Vietnam
$606.00
In Stock
EAN: 9332018075925
SKU: UCA0001
Categories: 200 Series Land Cruiser (2008-2021), 200 Series Land Cruiser ARMORED, ARB, Control Arms, Control Arms - 200 Series, Excluded, LX570, Suspension, Upper Control Arms
Tag: UCA
Brand: ARB
Description
UCA0001 – Old Man Emu Upper Control Arms – 200 Series UCA’s Land Cruiser
ARB 4×4 Accessories is pleased to announce the addition of Old Man Emu Front Upper Control Arms for a
range of popular Toyota applications to our suspension offering. When an IFS vehicle is fitted with a
suspension lift, the caster and camber can be pushed outside the factory specifications. IFS vehicles generally
have a few degrees of adjustment in their camber and caster from the factory. Adding an Old Man Emu
upper control arm brings the alignment cams back into an acceptable range for both caster and camber.

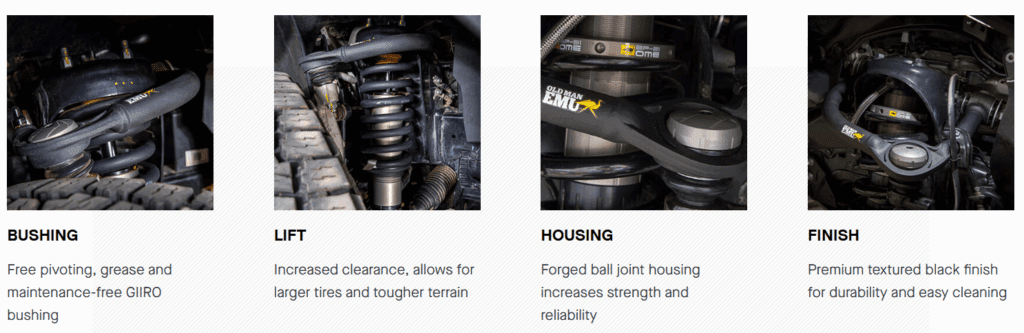

Features:
- Forged Ball Joint Housing
- Forged Eyelets
- Heavy Duty greasable Ball Joint
- OME Ball joint protective cap
- GIIRO bushings, free pivoting, grease free and maintenance free
- Increased camber and caster for 2in lift
- Mount provision for OE ABS wires
- ARB’s Intergrit powder coat finish
- Boxed in pairs with foam inserts
- Fitting instructions included
- OME Branded outer sleeve
- Tested and passed to meet VSB14 requirements
*Please note, after fitment of Old Man Emu Upper Control Arms, a wheel alignment is required. If the
vehicle is fitted with aftermarket tires/wheels, fender clearance should be checked. Additional caster may
be required if the tires/wheels do not clear. Wheel alignment information is included in the fitting
instructions.
The OME Upper Control Arm will provide an increase between +2.5 and +3.5 degrees of caster and up to
1.5 degrees of negative camber increase (figures based off an approximate 50mm or 2in lift)
Vehicle Fitment:
2008 Toyota Land Cruiser 200 Series
2009 Toyota Land Cruiser 200 Series
2010 Toyota Land Cruiser 200 Series
2011 Toyota Land Cruiser 200 Series
2012 Toyota Land Cruiser 200 Series
2013 Toyota Land Cruiser 200 Series
2014 Toyota Land Cruiser 200 Series
2015 Toyota Land Cruiser 200 Series
2016 Toyota Land Cruiser 200 Series
2017 Toyota Land Cruiser 200 Series
2018 Toyota Land Cruiser 200 Series
2019 Toyota Land Cruiser 200 Series
2020 Toyota Land Cruiser 200 Series
2021 Toyota Land Cruiser 200 Series
2008 Lexus LX570
2009 Lexus LX570
2010 Lexus LX570
2011 Lexus LX570
2012 Lexus LX570
2013 Lexus LX570
2014 Lexus LX570
2015 Lexus LX570
2016 Lexus LX570
2017 Lexus LX570
2018 Lexus LX570
2019 Lexus LX570
2020 Lexus LX570
2021 Lexus LX570
