Full Suspension Kits - Ranger 2024+
Showing all 3 resultsSorted by popularity
-
Full Suspension Kits - Ranger 2024+Dobinsons Ford Ranger MRR Lift Kit for 2024+ | 2-3″ Lift
- Suits Double Cab 4×4 2024+ Ford Ranger USA Models
- Lifts 2-3″ over original stock height, depending what parts you choose
- If you want to lift and level the truck, go for 3″ up front and 2″ in the rear. That removes the rake of the truck
- Lifting the front and rear by the same amount keeps the factory rake
- The terms MRA and MRR are used interchangeably. The A stands for Adjustable in the part number or SKU
- Suspension kit for 4×4 Off Road Use, fine tuned to match the vehicle

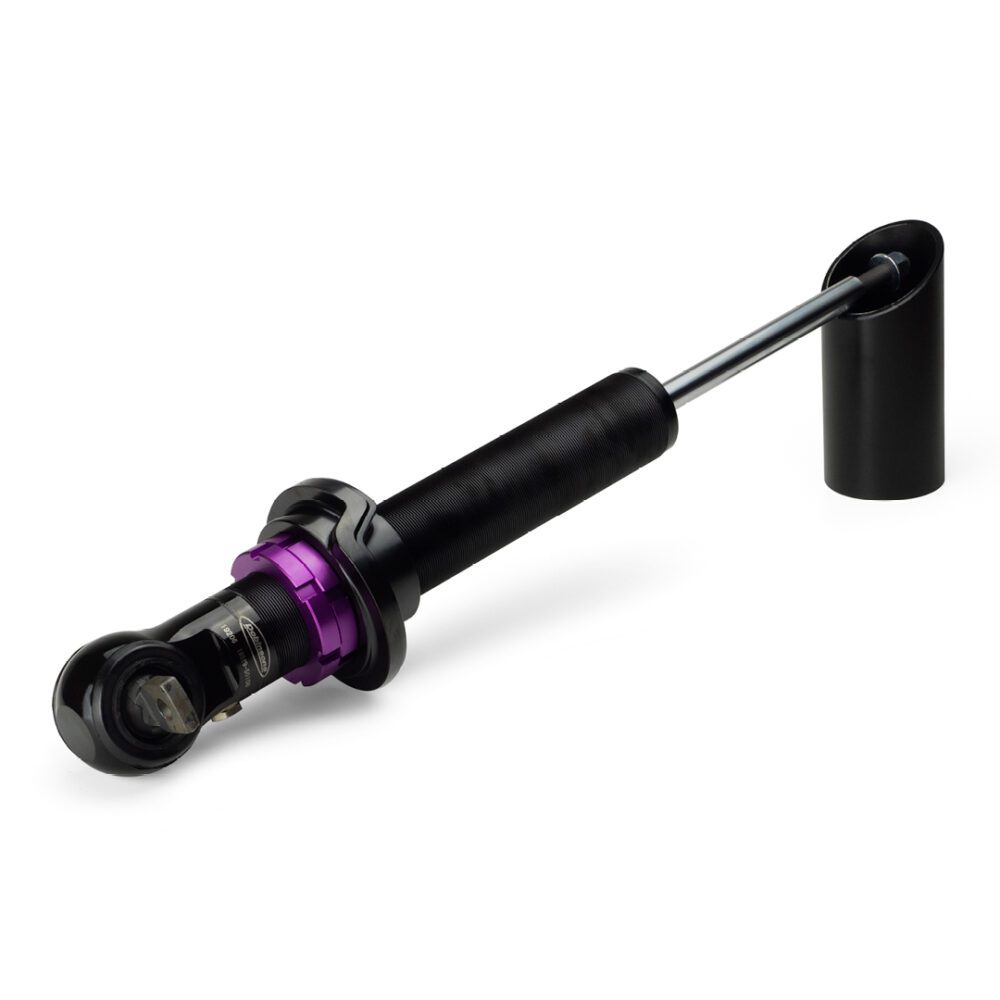

- Dobinsons MRR front struts are height adjustable by a fully threaded body
- 3-way adjustable valving – adjust high and low speed compression and rebound
- Massive 56mm (2.2″) Outer body with 50mm (1.97″) Bore and Piston
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression – For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression – For creepy crawling and cornering
- 15 Stage Rebound – Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminum Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM‐HNBR Sealing System
- TSUGAMI™ CNC machined components for precise tolerances
- Parker™ Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat up front
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Shock Design
- Multiple different leaf springs options to match up with the added weight you’ve put on your truck or not
- Choose your desired suspension parts to build the kit best suited to your weight
- Photos for reference only, actual product may appear different
- No parts are included if you don’t include them from the menu down below. The photo shows a complete suspension kit if all parts are purchased
- Note: 3″ of front lift also requires aftermarket UCA’s for a proper wheel alignment
(0 reviews) -
Full Suspension Kits - Ranger 2024+Dobinsons Ford Ranger IMS Lift Kit for 2024+ | 2-3″ Lift
- Suits Double Cab 4×4 2024+ Ford Ranger USA Models
- Lifts 2-3″ over original stock height, depending what parts you choose
- If you want to lift and level the truck, go for 3″ up front and 2″ in the rear. That removes the rake of the truck
- Lifting the front and rear by the same amount keeps the factory rake
- Suspension kit for 4×4 Off Road Use, fine tuned to match the vehicle
- Coils are specifically suited to the additional accessory load (weight) on the vehicle
- Fully rebuildable and re-valvable shocks
- Zero shock fade in all terrains with full load
- Direct, bolt-on replacement for easy fitment
- IFP – Internal Floating Piston, separates oil and nitrogen
- Corrosion resistant (EDP Surface Protection)
- Heavy duty single piece lower leg
- Enormous oil capacity
- Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
- Race inspired hi-flow CNC 6061 Billet alloy piston – for the ultimate in offroad handling
- 56mm/2.2” Bodied Series – 50mm hi-flow CNC 6061 Billet alloy piston – 50mm bore – Vehicle specific fitment
- High Quality Australian-made coil springs, heat treated, fully scragged, powder coated
- Multiple different leaf springs options to match up with the added weight you’ve put on your truck or not
- Choose your desired suspension parts to build the kit best suited to your weight
- Photos for reference only, actual product may appear different
- No parts are included if you don’t include them from the menu down below. The photo shows a complete suspension kit if all parts are purchased
- Note: 3″ of front lift also requires aftermarket UCA’s for a proper wheel alignment
(0 reviews) -
Full Suspension Kits - Ranger 2024+Dobinsons Ford Ranger Lift Kit for 2024+ | 2-3″ Lift (all options)
- Suits Double Cab 4×4 2024+ Ford Ranger USA Models
- Lifts 2-3″ over original stock height, depending what parts you choose
- Choose the IMS or MRR option if you want 3″ of front lift
- Read HERE about the 3 different types of Dobinsons shocks
- Complete suspension kit for 4×4 Off Road Use, fine tuned to match the vehicle
- Nitrogen Gas Charged Shocks, Superior Design, thicker walls, longer travel
- 4 different load ratings of leaf springs to choose from
- Made from the highest quality raw materials to give years of life under the harshest conditions
- Over 60 years of leaf spring design and manufacturing
- Choose your desired suspension parts to build the kit best suited to your weight
- Photos for reference only, actual product may appear different
- No parts are included if you don’t include them from the menu down below. The photo shows a complete suspension kit if all parts are purchased
- Note: 3″ of front lift also requires aftermarket UCA’s for a proper wheel alignment
(0 reviews)
