l59-111-r
Showing all 6 resultsSorted by popularity
-
Tacoma 3rd Gen (2016-2023)Dobinsons Tacoma L59-111-R Leaf Springs Pair for 2005 to 2023 (500-800LBS)
- Lifts Dual Cab Short Beds (DCSB) 2.25″ with 500-800LBS of added weight (more weight=less lift)
- Lifts Access Cab Long Beds (ACLB) 2-2.25″ with 0-200LBS of added weight
- Sold in pairs
- Each pack has 6 leaves
- Made from the highest quality raw materials to give years of life under the harshest conditions
- Over 60 years of leaf spring design and manufacturing
- Design features include Drawn, tapered and thinned leaf ends
- Manufactured to international quality standards ISO9001:2008 using premium grade Sup 9 silicon manganese spring steel,
- Anti-Friction inter leaf liners are use to reduce the friction at each leaf end where the load is creates and provides a smoother, quieter ride.
- Click here for Extra Leaf Kit for additional load support
- 3rd leaf down from the top can be removed to reduce spring rate, making springs medium load
- These are leaf springs ONLY and don’t come with bushings or any other parts. Scroll down for add-ons that go with these springs
(5 reviews) -
SuspensionDobinsons Tacoma Lift Kit for 2005-2023 4×4 (all options)
- 4×4 Access Cab models come with 1″ front lift from the factory. Lift heights listed are for Dual cab 4×4 models. Subtract 1″ for access cab models
- Long bed models require the next step up in leaf spring, or they will sit 1″ less high. L59-110-R lift only 1″ on long bed models
- Complete suspension kit for 4×4 Off Road Use, fine tuned to match the vehicle
- Coils are specifically suited to the additional accessory load (weight) on the vehicle
- Nitrogen Gas Charged Shocks, Superior Design, thicker walls, longer travel
- High Quality Australian-made coil springs, heat treated, fully scragged, powder coated
- Choose your desired suspension parts to build the kit best suited to your weight and desired lift height
- Multiple different leaf springs options to match up with the added weight you’ve put on your truck or not
- Choose from classic Twin Tube Shocks, IMS Monotube, or MRA 3-Way Adjustable Remote Resi Shocks
- Read this to learn about the shock differences – Shock Types
- Base kit usually starts with front coils, struts, rear leaf springs, poly bush kit, rear shocks, 1 pair greasable pins. You choose what you want
- Common installation instructions related to parts on this page
(12 reviews) -
Dobinsons
Dobinsons Tacoma L59-110-R Leaf Springs Pair for 2005-2023 (0-220LB Load)
- Suits 2005-2023 Toyota Tacoma. Lifts dual cab short beds 2-2.25″ with 0-220LBS load, and 1″ on a Long Bed
- Made from the highest quality raw materials to give years of life under the harshest conditions
- Over 60 years of leaf spring design and manufacturing
- Design features include Drawn, tapered and thinned leaf ends
- Manufactured to international quality standards ISO9001:2008 using premium grade Sup 9 silicon manganese spring steel,
- Anti-Friction inter leaf liners are use to reduce the friction at each leaf end where the load is creates and provides a smoother, quieter ride.
- Click here for Extra Leaf Kit for additional load support
- These are leaf springs ONLY and don’t come with bushings or any other parts. Scroll down for add-ons that go with these springs
- Sold as a pair – they are not side-specific
(4 reviews) -
Tacoma 3rd Gen (2016-2023)
Dobinsons Tacoma L59-112-R Heavy Duty Leaf Springs Pair for 2005-2023 (800-1200LBS)
- Suits Toyota Tacoma 2005-2023, lifts 2-2.25″ with at least 800LBS of constant load on the rear end
- Sold in pairs
- Each pack has 7 leaves
- Made from the highest quality raw materials to give years of life under the harshest conditions
- Over 60 years of leaf spring design and manufacturing
- Design features include Drawn, tapered and thinned leaf ends
- Manufactured to international quality standards ISO9001:2008 using premium grade Sup 9 silicon manganese spring steel,
- Anti-Friction inter leaf liners are use to reduce the friction at each leaf end where the load is creates and provides a smoother, quieter ride.
- Click here for Extra Leaf Kit for additional load support
- These are leaf springs ONLY and don’t come with bushings or any other parts. Scroll down for add-ons that go with these springs
(10 reviews) -
SuspensionFREE SHIPPING

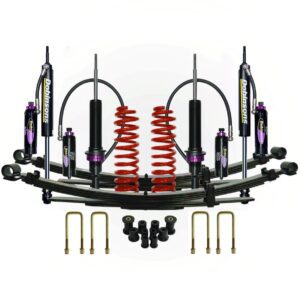

within 48 US StatesDobinsons 3-Way Adjustable Tacoma MRA Lift Kit for 2005-23 4×4 (0-3.5″)
- 4×4 Access Cab models come with 1″ front lift from the factory. Lift heights listed are for Dual cab 4×4 models. Subtract 1″ for access cab models
- Long bed models require the next step up in leaf spring, or they will sit 1″ less high. L59-110-R lift only 1″ on long bed models
- Complete suspension kit for 4×4 Off Road Use, fine tuned to match the vehicle
- Coils are specifically suited to the additional accessory load (weight) on the vehicle
- High Quality Australian-made coil springs, heat treated, fully scragged, powder coated
- Dobinsons MRA front struts are height adjustable by a fully threaded body
- 3-way adjustable valving – adjust high and low speed compression and rebound
- Massive 56mm (2.2″) Outer body with 50mm (1.97″) Bore and Piston
- Extended Travel Fronts – 567mm extended, 417mm compressed
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression – For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression – For creepy crawling and cornering
- 15 Stage Rebound – Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminum Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM‐HNBR Sealing System
- TSUGAMI™ CNC machined components for precise tolerances
- Parker™ Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat up front
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
- Includes front vehicle-specific resi brackets, rear includes resi brackets that get mounted to the frame as shown in the photos
- Coilover adjuster wrench is included for the fronts
- Choose your desired suspension parts to build the kit best suited to your weight and desired lift height
- Multiple different leaf springs options to match up with the added weight you’ve put on your truck or not
- Base kit includes front coils, front struts, rear leaf springs, and rear shocks, then you choose all of the desired add-ons from there, as well as the selections of each under the submenus
- For installation instructions, click here
(11 reviews) -
Suspension
Dobinsons Tacoma IMS Kit for 2005 to 2023 4×4 (0-3.5″)
- 4×4 Access Cab models come with 1″ front lift from the factory. Lift heights listed are for Dual cab 4×4 models. Subtract 1″ for access cab models
- Long bed models require the next step up in leaf spring, or they will sit 1″ less high. L59-110-R lift only 1″ on long bed models
- Complete suspension kit for 4×4 Off Road Use, fine tuned to match the vehicle
- Coils are specifically suited to the additional accessory load (weight) on the vehicle
- Fully rebuildable and re-valvable shocks
- Zero shock fade in all terrains with full load
- Direct, bolt-on replacement for easy fitment
- IFP – Internal Floating Piston, separates oil and nitrogen
- Corrosion resistant (EDP Surface Protection)
- Heavy duty single piece lower leg
- Enormous oil capacity
- Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
- Race inspired hi-flow CNC 6061 Billet alloy piston – for the ultimate in offroad handling
- 56mm/2.2” Bodied Series – 50mm hi-flow CNC 6061 Billet alloy piston – 50mm bore – Vehicle specific fitment
- High Quality Australian-made coil springs, heat treated, fully scragged, powder coated
- Multiple different leaf springs options to match up with the added weight you’ve put on your truck or not
- Choose your desired suspension parts to build the kit best suited to your weight and desired lift height
- Base kit usually starts with front coils, struts, rear leaf springs, poly bush kit, rear shocks, 1 pair greasable pins. You choose what you want
(13 reviews)
