Shocks + Struts - Sequoia 3rd Gen
Showing all 8 resultsSorted by popularity
-
SuspensionFREE SHIPPING
within 48 US StatesDobinsons IMS59-60446 2.6″ IFP Front Struts Pair | Tundra 2022+ and Sequoia 2023+
- Front IMS struts to suit Toyota Tundra 2022-2024+ and Sequoia 2023-2024+
- Can be used with OEM coils or Dobinsons lifted coils
- Suits 0-3″ of lift
- Fully rebuildable and re-valvable
- Zero shock fade in all terrains with full load
- Direct, bolt-on replacement for easy fitment
- IFP – Internal Floating Piston, separates oil and nitrogen
- Corrosion resistant (EDP Surface Protection)
- Heavy duty single piece lower leg
- Enormous oil capacity
- Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
- Race inspired hi-flow CNC 6061 Billet alloy piston – for the ultimate in offroad handling
- 66mm/2.6” Bodied Series – 60mm hi-flow CNC 6061 Billet alloy piston – 60mm bore
- 22mm / 7/8″ shaft diameter on front struts
- Full 2 year limited warranty, no set rebuild time period
- IMS59-60446 specs – 540mm extended, 390mm compressed
- SOLD IN PAIRS
- Coil seat for IMS59-60446 should be set at 175mm (6.87″) from the strut bushing eye
- Photo for illustration purposes
(15 reviews) -
SuspensionFREE SHIPPING
within 48 US StatesDobinsons MRA59-A446 3-Way Adjustable Front Struts Pair | Tundra 22+, Sequoia 23+
- Suits Toyota Tundra 2022-2024+ and Toyota Sequoia 2023-2024+
- Can be used with OEM coils or with Dobinsons lifted coils
- Height adjustable with a fully threaded body
- Massive 66mm (2.6″) Outer body with 60mm (2.36″) Bore and Piston
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression – For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression – For creepy crawling and cornering
- 15 Stage Rebound – Control your coils, prevent bucking
- 60mm CNC Machined High Flow Billet Aluminum Race Piston
- 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM‐HNBR Sealing System
- TSUGAMI™ CNC machined components for precise tolerances
- Parker™ Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
- Includes Reservoir Brackets and Hardware, Sticker Pack, and Adjuster Wrench
- SOLD IN PAIRS
- Full 2 year limited warranty, no set rebuild time period
- Does not include coil springs or top mounts – sold separately
- Must mount the banjo fitting and hose inwards on MRA struts
- Coil seat for MRA59-A446 should be set at 175mm (6.87″) from the strut bushing eye
- Installation Instructions
(14 reviews) -
Sequoia 3rd Gen (2023-2024+)FREE SHIPPING
within 48 US StatesDobinsons IMS59-60441 2.6″ IFP Rear Shocks Pair
- Suits 2023+ Toyota Sequoia with 2-3″ of lift using Dobinsons Coils
- Also suits 2021+ Toyota Land Cruiser 300 Series and 2024+ Land Cruiser 250 Series
- SOLD IN PAIRS
- Fully rebuildable and re-valvable
- Zero shock fade in all terrains with full load
- Direct, bolt-on replacement for easy fitment
- IFP – Internal Floating Piston, separates oil and nitrogen
- Corrosion resistant (EDP Surface Protection)
- Heavy duty single piece lower leg
- Enormous oil capacity
- Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
- Race inspired hi-flow CNC 6061 Billet alloy piston – for the ultimate in offroad handling
- 66mm/2.6” Bodied Series – 60mm hi-flow CNC 6061 Billet alloy piston – 60mm bore – Vehicle specific fitment – Suitable for most heavier vehicles
- 22mm / 7/8″ shaft diameter on rear shocks
- 680mm extended, 422mm compressed
- Full 2 year limited warranty, no set rebuild time period
(17 reviews) -
Sequoia 3rd Gen (2023-2024+)FREE SHIPPING

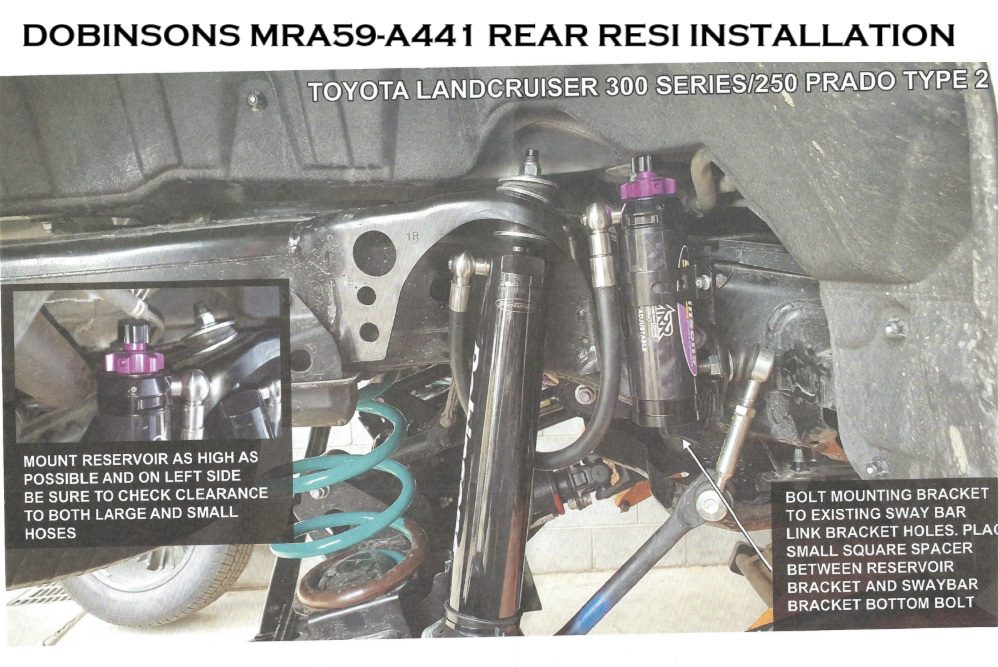

within 48 US StatesDobinsons MRA59-A441 2.6″ 3-Way Adjustable Rear Shocks Pair
- Suits 2023+ Toyota Sequoia with 2-3″ of lift using Dobinsons Coils
- Also suits 2021+ Toyota Land Cruiser 300 Series and 2024+ Land Cruiser 250 Series
- 3-way adjustable valving – Adjust high and low speed compression and rebound
- Massive 66mm (2.6″) Outer body with 60mm (2.36″) Bore and Piston
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression – For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression – For creepy crawling and cornering
- 15 Stage Rebound – Control your coils, prevent bucking
- 60mm CNC Machined High Flow Billet Aluminum Race Piston
- 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM‐HNBR Sealing System
- TSUGAMI™ CNC machined components for precise tolerances
- Parker™ Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
- Specifications – 680mm extended, 422mm compressed
- SOLD IN PAIRS
- Includes Reservoir Brackets and Hardware, and Adjuster Wrench
- Full 2 year limited warranty, no set rebuild time period
(15 reviews) -
Shocks + Struts - Sequoia 3rd GenFREE SHIPPING
within 48 US StatesDobinsons 3.0-4.0″ 3-Way Adjustable MRA Coilovers for Toyota Sequoia 2023+
- Suits Toyota Sequoia 2023-2024+ Models
- TRD Pro Models yield 1″ less lift than listed here, as they are already lifted taller than base models
- Sold as a Pair, ready to bolt in
- 66mm/2.6” Bodied Series – 60mm hi-flow CNC 6061 Billet alloy piston – 60mm bore – Vehicle specific fitment
- Looking for a quick and easy way to lift your Sequoia? This is your answer
- Select your desired lift height and tell us your weight – we’ll take care of the rest!!
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression – For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression – For creepy crawling and cornering
- 15 Stage Rebound – Control your coils, prevent bucking
- 60mm CNC Machined High Flow Billet Aluminum Race Piston
- 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM‐HNBR Sealing System
- TSUGAMI™ CNC machined components for precise tolerances
- Parker™ Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
- Includes Reservoir Brackets and Hardware, Sticker Pack, and Adjuster Wrench
- SOLD IN PAIRS
- Full 2 year limited warranty, no set rebuild time period
- Must mount the banjo fitting and hose inwards on MRA struts
- Coil seat for MRA59-A446 will be set at 175mm (6.87″) from the strut bushing eye
- Photos for illustration purposes
- Instructions for setting and adjusting coil seat height
- Note about lift heights – all vehicles can have some variance and desired lift height may need to be adjusted to suit your specific vehicle. Adding 2.5″ or more lift, new UCA’s should be added for proper articulation and correct wheel alignment
- If doing a 4″ lift in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, failure to complete these requirements could cause OE CV-axle failure
- TRD axle shafts: PT362-3432B and PT362-3431B
- Front Installation Instructions
- Link to Matching rear shocks
- A Diff Drop Kit should be run with 4″ of lift
- Please NOTE: Assembled coilovers cannot be returned, as they are made to order
(7 reviews) -
Shocks + Struts - Sequoia 3rd GenFREE SHIPPING
within 48 US StatesDobinsons 3.0-4.0″ Assembled IMS Coilovers for Toyota Sequoia 2023+
- Suits Toyota Sequoia 2023-2024+ Models
- TRD Pro Models yield 1″ less lift than listed here, as they are already lifted taller than base models
- 66mm/2.6” Bodied Series – 60mm hi-flow CNC 6061 Billet alloy piston – 60mm bore – Vehicle specific fitment
- Looking for a quick and easy way to lift your Sequoia? This is your answer
- Select your desired lift height and tell us your weight – we’ll take care of the rest!!
- Dobinsons IMS are height adjustable by a threaded body with adjustable collar
- The Dobinsons IMS Coilovers will come pre-assembled to the selected height with new struts, coils and top mounts
- Fully rebuildable and re-valvable
- SOLD IN PAIRS – READY TO BOLT IN
- Zero shock fade in all terrains with full load
- Direct, bolt-on replacement for easy fitment
- IFP – Internal Floating Piston, separates oil and nitrogen
- Corrosion resistant (EDP Surface Protection)
- Heavy duty single piece lower leg
- Enormous oil capacity
- Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
- Race inspired hi-flow CNC 6061 Billet alloy piston – for the ultimate in offroad handling
- Full 2 year limited warranty, no set rebuild time period
- Photos for illustration purposes – Sequoia IMS coilovers use a slightly different top mount
- Instructions for setting and adjusting coil seat height
- Note about lift heights – all vehicles can have some variance and desired lift height may need to be adjusted to suit your specific vehicle. Adding 2.5″ or more lift, new UCA’s should be added for proper articulation and correct wheel alignment
- If doing a 4″ lift in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, failure to complete these requirements could cause OE CV-axle failure
- TRD axle shafts: PT362-3432B and PT362-3431B
- Link to Matching rear shocks
- A Diff Drop Kit should be run with 4″ of lift
- Please NOTE: Assembled coilovers cannot be returned, as they are made to order
- Note: If you’re looking for less lift height, you can buy these IMS Struts only and use them with your OEM coils and add preload to add lift height
(3 reviews) -
Sequoia 3rd Gen (2023-2024+)

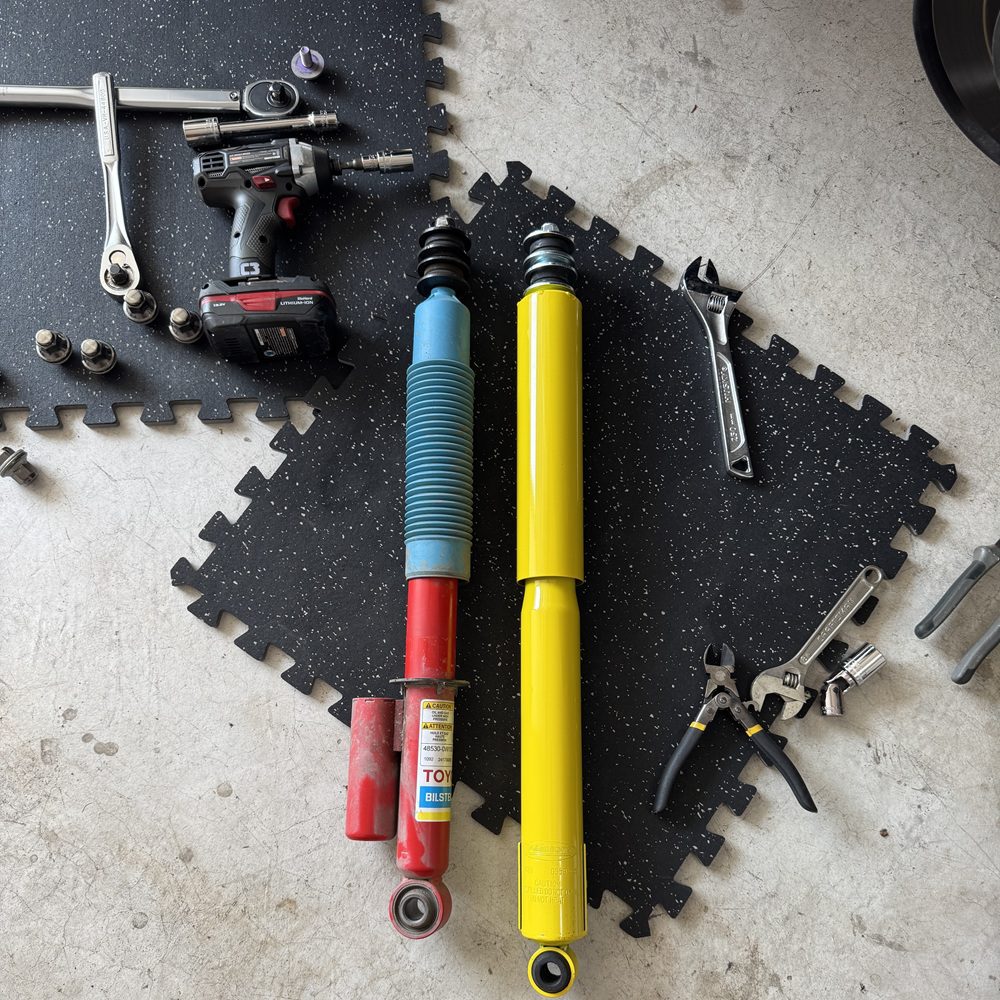

Dobinsons GS59-441 Pair of Rear Shocks | Sequoia & LC300
- Suits 2023+ Toyota Sequoia with 2-3″ of lift using Dobinsons Coils
- Also suits 2021+ Toyota Land Cruiser 300 Series
- Nitrogen Gas Charged, low pressure gas, reducing reducing oil aeration (shock fade)
- Superior Design, thicker walls, longer travel
- Japanese NOK Multi-Lip seals
- Fuchs German shock absorber oil
- Natural Rubber Bushings for reduced noise vibration and flexibility
- Teflon Piston Rings, double Chrome hardened rods, metal shock boot to protect rod from damage
- Matched to compliment Dobinsons Complete Suspension Systems
- Sold in Pairs
(8 reviews)
