Full Suspension Kits - Tundra 3rd Gen
Showing all 6 resultsSorted by popularity
-
Full Suspension Kits - Tundra 3rd GenFREE SHIPPING
within 48 US StatesDobinsons 2-3″ IMS Suspension Kit | 2022-2024 Toyota Tundra
- Dobinsons IMS suspension kit for your 2022-2024+ Toyota Tundra
- Complete suspension kit for 4×4 Off Road Use, fine tuned to match the vehicle
- Hybrid Models lift 1-1.5″ less lift than listed here
- Coils are specifically suited to the additional accessory load (weight) on the vehicle
- 66mm/2.6” Bodied Series – 60mm hi-flow CNC 6061 Billet alloy piston – 60mm bore – Vehicle specific fitment
- 22mm shaft diameter on front struts, 18mm on rear shocks
- Fully rebuildable and re-valvable shocks
- No specific rebuild intervals – rebuild only when necessary
- Zero shock fade in all terrains with full load
- Direct, bolt-on replacement for easy fitment
- IFP – Internal Floating Piston, separates oil and nitrogen
- Corrosion resistant (EDP Surface Protection)
- Heavy duty single piece lower leg
- Enormous oil capacity
- Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
- Race inspired hi-flow CNC 6061 Billet alloy piston – for the ultimate in offroad handling
- High Quality Australian-made coil springs, heat treated, fully scragged, powder coated
- IMS59-60446 specs – 540mm extended, 390mm compressed
- IMS59-60887 and IMS59-60687 specs – 680mm extended, 421mm compressed
- Choose your desired suspension parts to build the kit best suited to your weight and desired lift height
- Installation Note: Transfer over the rear OEM coil isolators from the stock coils to these to prevent coil slap
- If doing a 2.5″ lift or higher in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, failure to complete these requirements could cause OE CV-axle failure
- TRD axle shafts: PT362-3432B and PT362-3431B
- **Not compatible with factory rear airbag suspension
- Standard Coil seat height for IMS59-60446 should be set at 175mm (6.87″) from the strut bushing eye to top of coil isolator. Add preload as necessary to adjust the height further
(6 reviews) -
Struts + Shocks - Tundra 2022+FREE SHIPPING
within 48 US StatesDobinsons 2.0-3.0″ Pre-Assembled IMS Coilovers for Toyota Tundra 2022+
- Suits Toyota Tundra 2022+ Models
- TRD Pro Models yield 1″ less lift than listed here, as they are already lifted taller than base models
- Hybrid Models lift 1-1.5″ less lift than listed here
- 66mm/2.6” Bodied Series – 60mm hi-flow CNC 6061 Billet alloy piston – 60mm bore – Vehicle specific fitment
- Looking for a quick and easy way to lift your Tundra? This is your answer
- Select your desired lift height and tell us your weight – we’ll take care of the rest!!
- Dobinsons IMS are height adjustable by a threaded body with adjustable collar
- The Dobinsons IMS Coilovers will come pre-assembled to the selected height with new struts, coils and top mounts
- Fully rebuildable and re-valvable
- SOLD IN PAIRS – READY TO BOLT IN
- Zero shock fade in all terrains with full load
- Direct, bolt-on replacement for easy fitment
- IFP – Internal Floating Piston, separates oil and nitrogen
- Corrosion resistant (EDP Surface Protection)
- Heavy duty single piece lower leg
- Enormous oil capacity
- Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
- Race inspired hi-flow CNC 6061 Billet alloy piston – for the ultimate in offroad handling
- Full 2 year limited warranty, no set rebuild time period
- Photos for illustration purposes – Tundra IMS coilovers use a slightly different top mount
- Instructions for setting and adjusting coil seat height
- Note about lift heights – all vehicles can have some variance and desired lift height may need to be adjusted to suit your specific vehicle. Adding 2.5″ or more lift, new UCA’s should be added for proper articulation and correct wheel alignment
- If doing a 2.5″ lift or higher in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, failure to complete these requirements could cause OE CV-axle failure
- TRD axle shafts: PT362-3432B and PT362-3431B
- Standard Coil seat height for IMS59-60446 is set at 175mm (6.87″) from the strut bushing eye to top of coil isolator
- Link to Matching rear shocks
- A Diff Drop Kit needs to be run with 3″ of lift
- Please NOTE: Assembled coilovers cannot be returned, as they are made to order
(5 reviews) -
Full Suspension Kits - Tundra 3rd GenFREE SHIPPING
within 48 US StatesDobinsons 3-Way Adjustable MRR Tundra Lift Kit | 2022-2024 (2-3″)
- Dobinsons MRR suspension kit for your 2022-2024+ Tundra
- Specs are for the non-Hybrid model
- Hybrid Models lift 1-1.5″ less lift than listed here
- Complete suspension kit for 4×4 Off Road Use, fine tuned to match the vehicle
- Coils are specifically suited to the additional accessory load (weight) on the vehicle
- Nitrogen Gas Charged Remote Reservoir 3-way adjustable Shocks, Superior Design, thicker walls, longer travel
- Adjust high and low speed compression (HSC and LSC) and rebound adjustment front and rear
- Massive 66mm (2.6″) body size with 60mm pistons front and rear
- High Quality Australian-made coil springs, heat treated, fully scragged, powder coated
- Zero shock fade in all terrains with full load
- Direct, bolt-on replacement for easy fitment
- IFP – Internal Floating Piston, separates oil and nitrogen in the external reservoir
- Corrosion resistant (EDP Surface Protection)
- Heavy duty single piece lower leg
- Enormous oil capacity
- Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
- Race inspired hi-flow CNC 6061 Billet alloy piston – for the ultimate in offroad handling
- Choose your desired suspension parts to build the kit best suited to your weight and desired lift height
- Front Resi Installation
- Installation Note: Transfer over the rear OEM coil isolators from the stock coils to these to prevent coil slap
- If doing a 2.5″ lift or higher in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, failure to complete these requirements could cause OE CV-axle failure
- TRD axle shafts: PT362-3432B and PT362-3431B
- **Not compatible with factory rear airbag suspension
- Standard Coil seat height for MRA59-A446 should be set at 175mm (6.87″) from the strut bushing eye to top of coil isolator
(7 reviews) -
Struts + Shocks - Tundra 2022+FREE SHIPPING
within 48 US StatesDobinsons 2.0-3.0″ 3-Way Adjustable MRA Coilovers for Toyota Tundra 2022+
- Suits Toyota Tundra 2022-2024+ Models
- TRD Pro Models yield 1″ less lift than listed here, as they are already lifted taller than base models
- Hybrid Models lift 1-1.5″ less lift than listed here
- Sold as a Pair, ready to bolt in
- 66mm/2.6” Bodied Series – 60mm hi-flow CNC 6061 Billet alloy piston – 60mm bore – Vehicle specific fitment
- Looking for a quick and easy way to lift your Tundra? This is your answer
- Select your desired lift height and tell us your weight – we’ll take care of the rest!!
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression – For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression – For creepy crawling and cornering
- 15 Stage Rebound – Control your coils, prevent bucking
- 60mm CNC Machined High Flow Billet Aluminum Race Piston
- 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM‐HNBR Sealing System
- TSUGAMI™ CNC machined components for precise tolerances
- Parker™ Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
- Includes Reservoir Brackets and Hardware, Sticker Pack, and Adjuster Wrench
- SOLD IN PAIRS
- Full 2 year limited warranty, no set rebuild time period
- Must mount the banjo fitting and hose inwards on MRA struts
- Coil seat for MRA59-A446 will be set at 175mm (6.87″) from the strut bushing eye
- Photos for illustration purposes
- Instructions for setting and adjusting coil seat height
- Note about lift heights – all vehicles can have some variance and desired lift height may need to be adjusted to suit your specific vehicle. Adding 2.5″ or more lift, new UCA’s should be added for proper articulation and correct wheel alignment
- If doing a 2.5″ lift or higher in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, failure to complete these requirements could cause OE CV-axle failure
- TRD axle shafts: PT362-3432B and PT362-3431B
- Standard Coil seat height for MRA59-A446 is set at 175mm (6.87″) from the strut bushing eye to top of coil isolator
- Installation Instructions
- Link to Matching rear shocks
- A Diff Drop Kit needs to be run at 3″ of lift
- Please NOTE: Assembled coilovers cannot be returned, as they are made to order
(7 reviews) -
Tundra 3rd Gen (2022-2024)

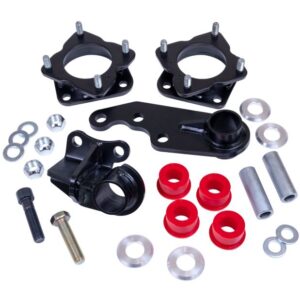

2″ Front Strut Spacer Kit for Tundra 2022+ & Sequoia 2023+
- Suits 2022+ Toyota Tundra and 2023+ Toyota Sequoia
- Note: Not for use on Tundra or Sequoia equipped factory rear air, TRD PRO, or TRD Off-Road.
- ReadyLIFT leveling kits are the fastest, safest, most cost-effective way to bring the front of your vehicle level with the rear for that ideal lifted neutral stance.
- Our front strut assembly eliminates the hassle, time, and concern of compressing springs.
- A ReadyLIFT leveling kit will maintain a smooth OEM ride without adding stress to stock suspension components!
- The all-new part number 66-52200 2022-UP Toyota Tundra Leveling Kit is an excellent choice for those who want a level stance while running larger tires up to 34 inches.
- The no-trim maximum tire size for this kit is a 295-60R20 with a 20” X 9” wheel and +18 offset.
- Fabricated Steel Front Strut Spacers With Durable Black Powder Coat Finish
- Product Will Retain Ride Or Handling Quality
- Engineered And Built To Provide Years Of Trouble Free Service
- Made In USA
- Limited 1 Year Warranty
- Download Pdf Instructions
(9 reviews)
